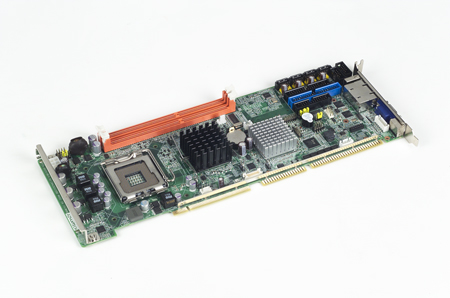

PCA-6011

LGA775 Intel? Core 2 Quad? 全長CUP卡,帶 VGA/DVI/雙GbE端口

Main Features

Compliant with PICMG 1.0
Supports LGA 775 Intel® Core™2 Quad FSB 1333 MHz processors
Supports Dual Channel DDR3 1333 SDRAM up to 8 GB
Dual GbE LAN via two PCIe x1 lane
2 COM ports, 4 SATA ports, 8 USB ports
數據表(PDF) 技術資料下載

規格表

		PCA-6012G2-00A1E	PCA-6012VG-00A1E
Form Factor	Form Factor	PICMG1.0	PICMG1.0
Processor System	CPU	Intel Atom D525	Intel Atom N455
	CPU TDP	Up to 13 W	Up to 6.5W
	Frequency	Up to 1.8 GHz	Up to 1.66 GHz
	Core Number	2	1
	L2 Cache	1MB	512KB
	BIOS	AMI 16 MBit	AMI 16 MBit
	Chipset	Intel ICH8M	Intel ICH8M
	Integrated Graphics	Yes	Yes
	FSB	-	-
Memory	Technology	DDR3 800/667 MHz	DDR3 667 MHz
	Capacity	Up to 4GB	Up to 2GB
	Socket	1 x 204-pin DDR3	2 x 204-pin DDR3
Display	Controller	Intel HD graphics Integrated	Intel HD graphics Integrated
	Graphic Memory	Shared with system memory up to 256MB	Shared with system memory up to 256MB
	Multiple Display	Dual	Single
	Display Interface	VGA: Up to 2048 x 1536 LVDS: Up to 1366 x 768	VGA: Up to 1400 x 1050
Expansion Interface	PCI	1	1
	ISA	1	1
	LPC	1	1
	SMBus	1	1
	I2C Bus	1	1
Ethernet	Controller	LAN1: Intel 82567V LAN2: Intel 82583V	LAN1: Intel 82567V
	Speed	10/100/1000 Mbps	10/100/1000 Mbps
	Connector	2 x RJ45	1 x RJ45
WatchDog Timer	Output	System Reset	System Reset
WatchDog Timer	Interval	Programmable 1~255 sec	Programmable 1~255 sec
I/O	SATA	3 x SATA II	3 x SATA II
	Compact Flash	1	-
	IDE	1	1
	Floppy	1	1
	USB2.0	9	8
	GPIO	8-bit	8-bit
	LPT	1	1
	COM Port	2 x RS232	2 x RS232
	PS/2 Keyboard/Mouse	1	1
	System Fan	1	-
	COM	-	1 x RS232
	Ethernet	2	1
	VGA	1	1
Power Requirement	Voltage	+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V	+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
Power Requirement	Current	0.44A/3.71A/0A/0.15A/0A/0A	0.16A/2.81A/0A/0.13A/0A/0A
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-40~ 85° C and 60° C @ 95% RH Non-Condensing	-40~ 85° C and 60° C @ 95% RH Non-Condensing
	Non-Operating Vibration	2 Grms	2 Grms
Physical Characteristics	Dimensions (LxW)	338 x 122 mm (13.3" x 4.8")	338 x 122 mm (13.3" x 4.8")
Physical Characteristics	Weight	0.5 kg	0.5 kg
Certification	EMC	CE, FCC	CE, FCC
